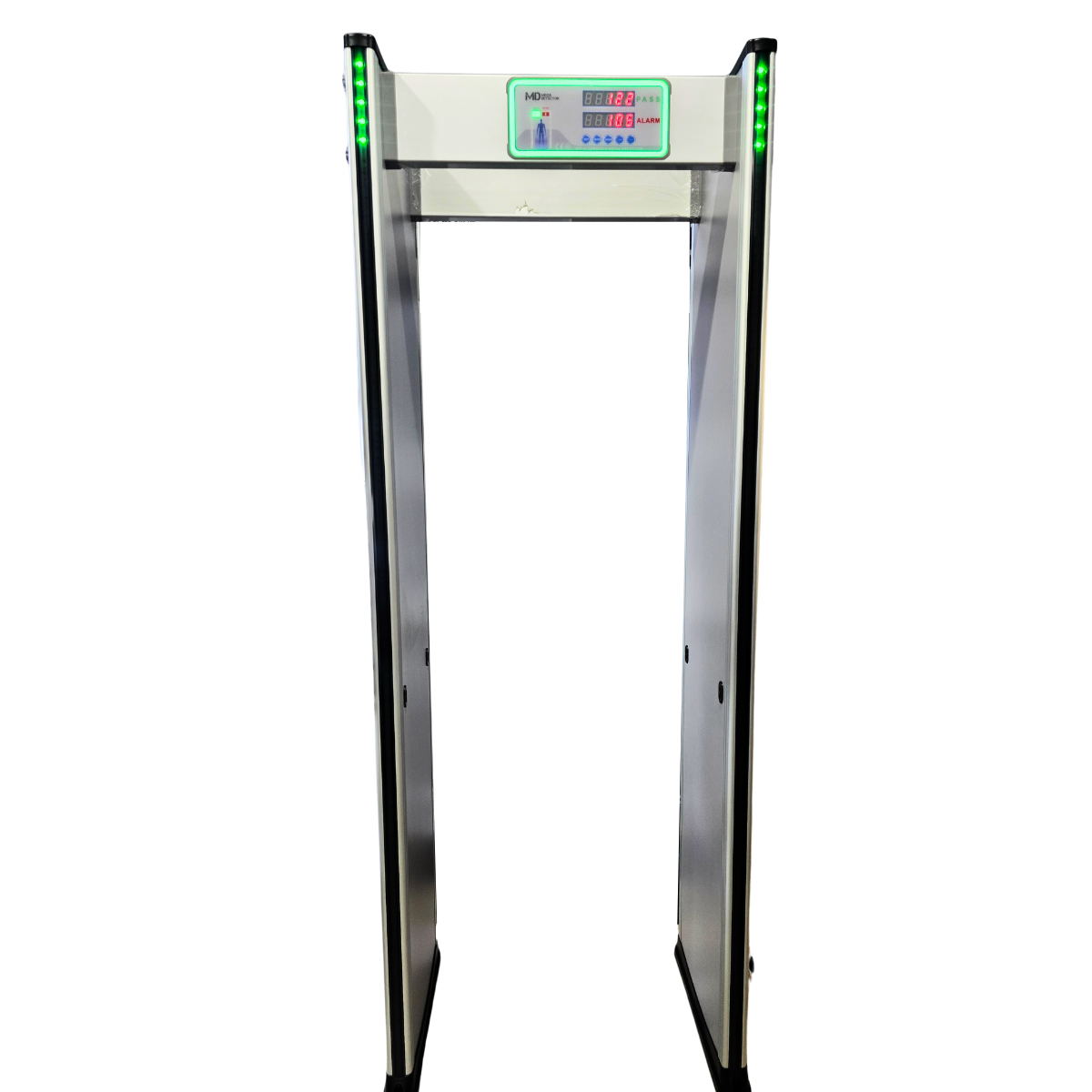

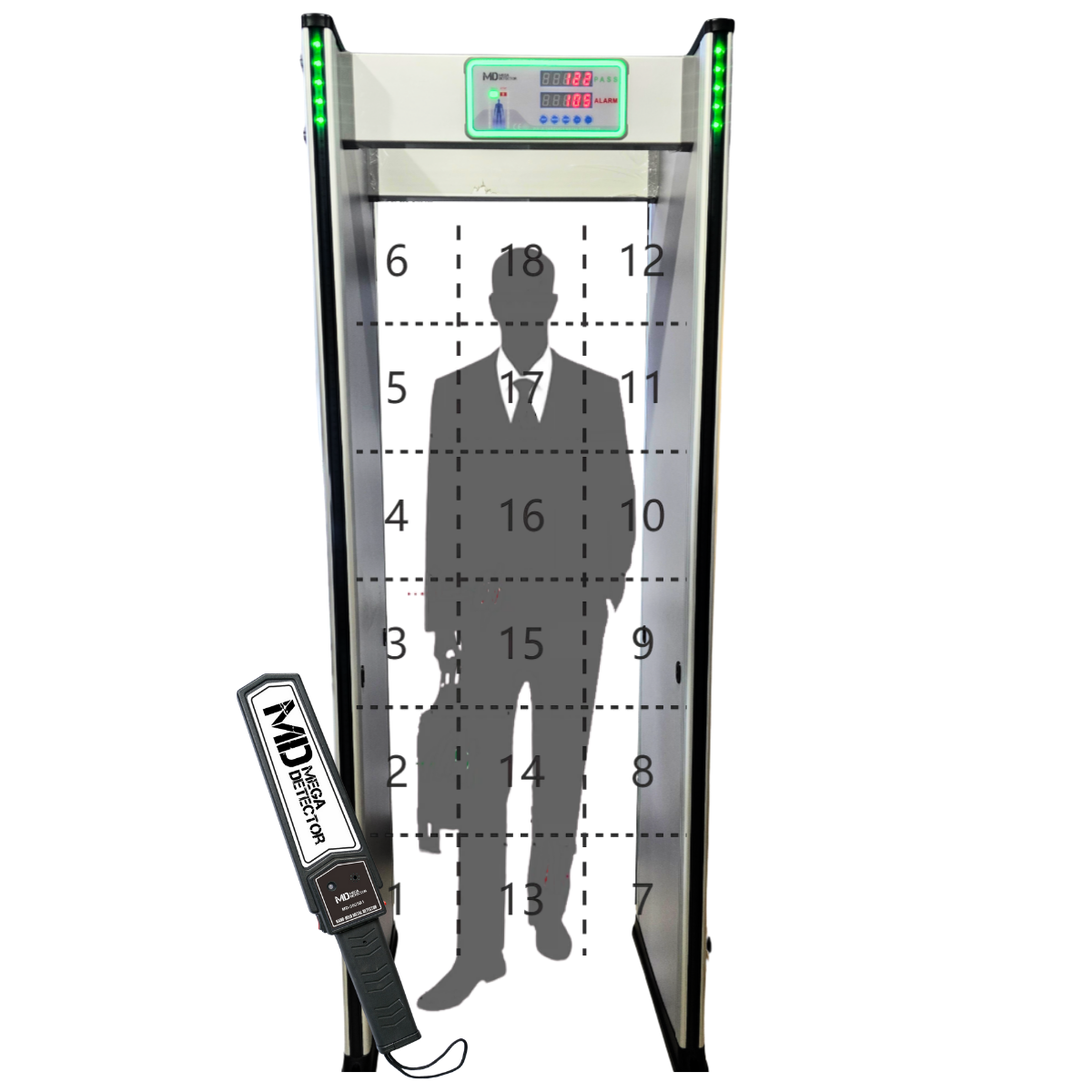

MegaDetector Walk-Through Metal Detector Door Frame MD50018Z of 18 Zones

MegaDetector Walk-Through Metal Detector Door Frame MD50018Z of 18 Zones

$ 2,695.00
$ 2,695.00
Sale Sold out
  • Full body 100% metal detector for maximum security. The md500 walk through metal detector is designed for high traffic locations. It is a full body 100% metal detector, which means it can detect metal objects hidden under clothes. It is a perfect choice for airports, schools, courthouses, prisons, and other high-risk locations.

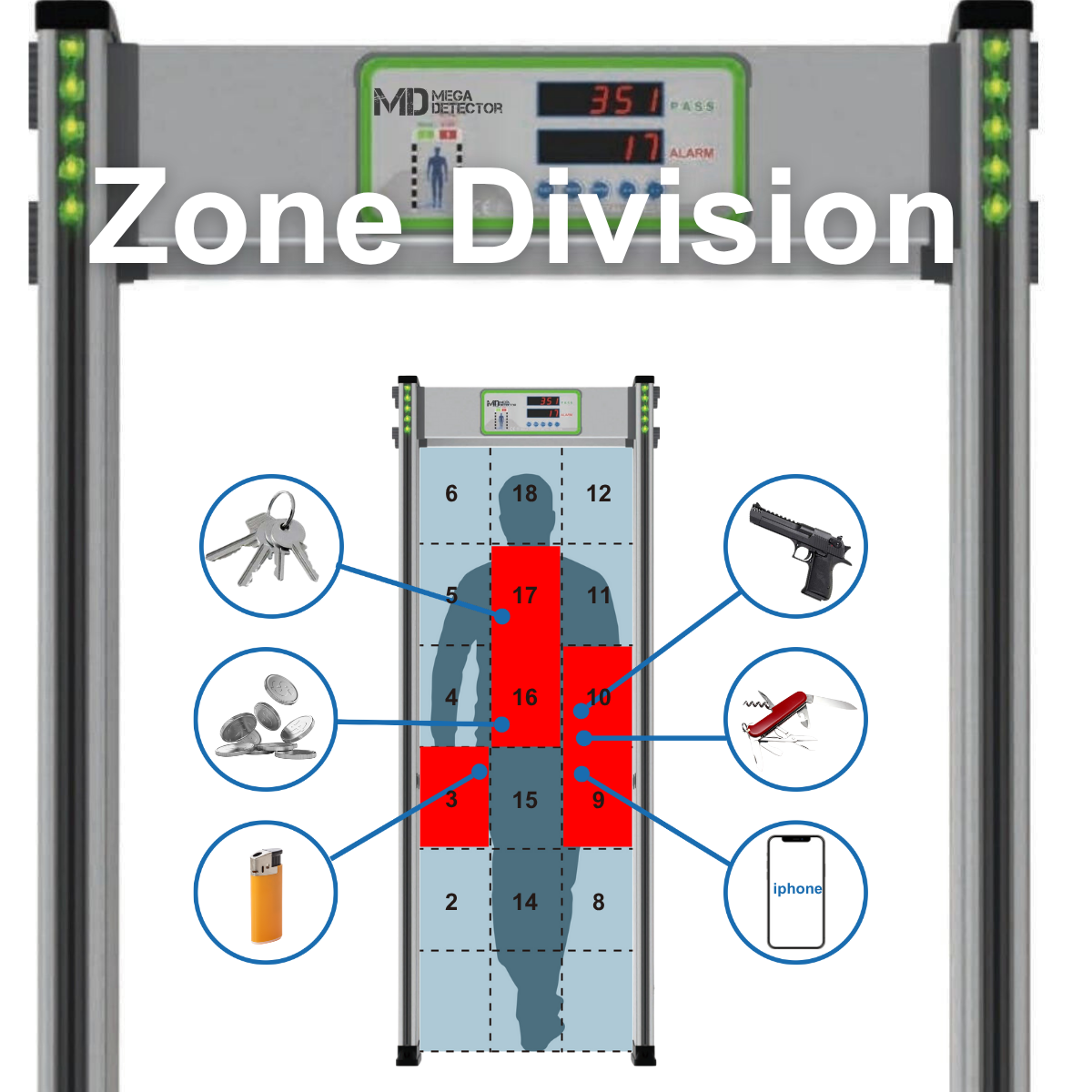

  • 18 sensitive zones and adjustable sensitivity. The metal detector has 18 sensitive zones and adjustable sensitivity, which can be adjusted according to different security levels and locations. The md500 walk through metal detector is easy to operate and maintain.
  • Audio and visual alert. When metal objects are detected, the md500 walk through metal detector will alert users with a flashing light and an alarm sound. The alarm sound can be turned on or off according to your needs.
  • One-year warranty. The md500 walk through metal detector It is safe and reliable. We provide a one-year warranty for the md500 walk through metal detector. If you have any questions about the product, please feel free to contact us.

    Technical Data

    MD500 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.

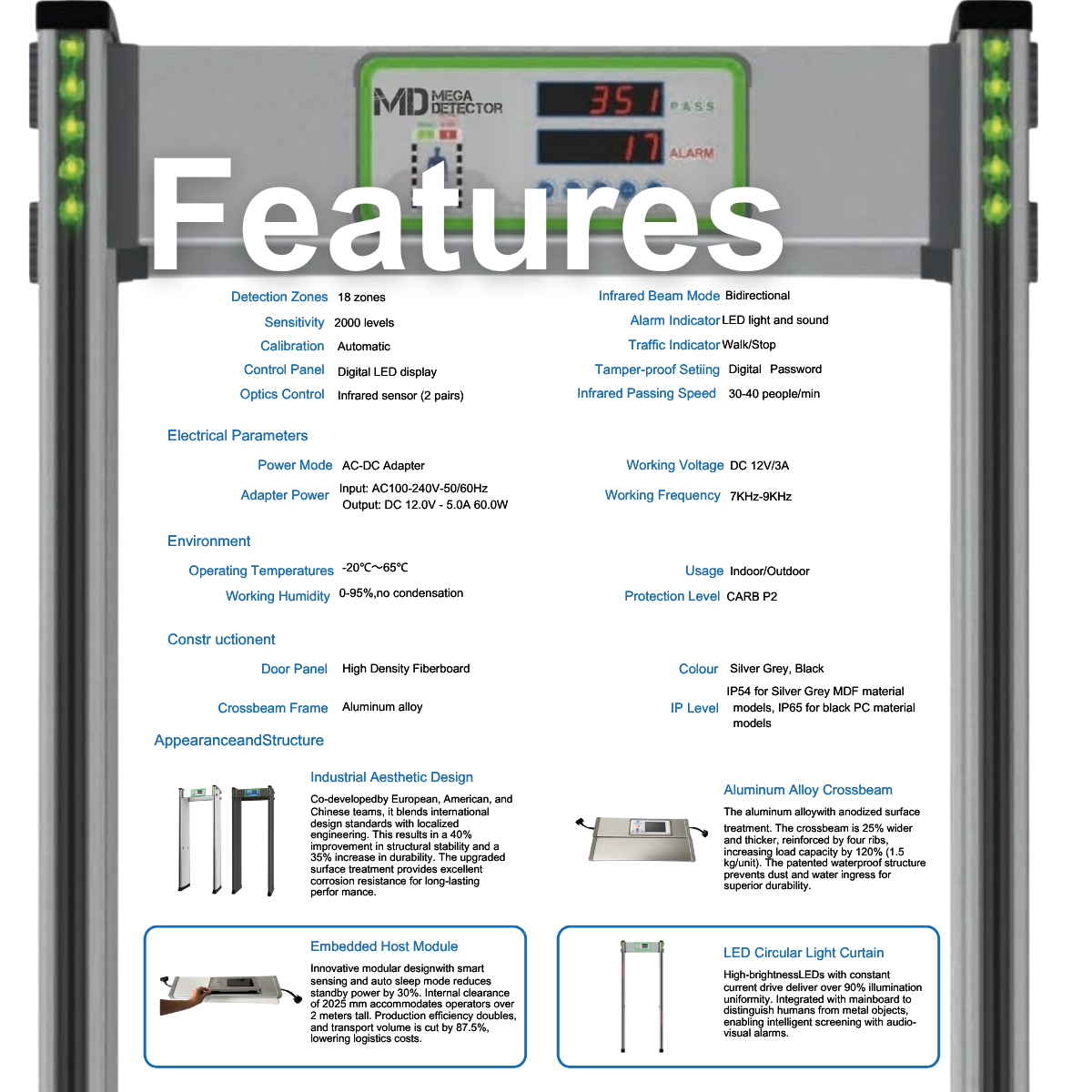

    FUNCTION PARAMETER

    Detection Zones18 zone Multi-Unit Synchronization Manual

    Visual Displays Digital tube display

    Access Control Button

    Control Outputs Panel light and buzzer

    Sensitivity Each zone 0-99, 100 levels adjustable

    Frequency 5.9K-8.6KHz continuously adjustable

    Infrared passing speed60/min

    ELECTRICAL PARAMETERS PowerAC110V（220V）/60HZ（50HZ）Working current1A Power consumption<12W USE class IP53 Operating Temperatures-20℃～45℃ Working humidity 0-0.95,no condensation MATERIALConstructionMDF, gray Cable connectorDB25 Installation method Vertical installation
